Craftsman Garden Tractor 917.276101

Also listed as a 917 276101 and 917276101.

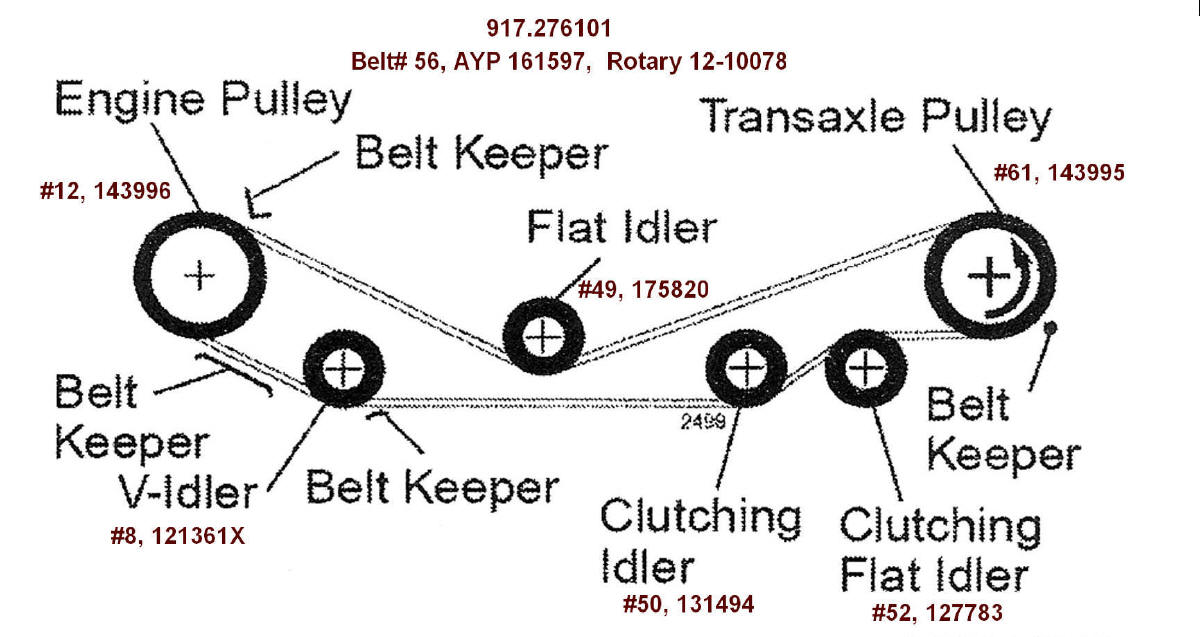

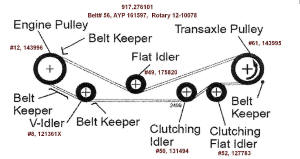

Drive Belt Pulley Part Numbers

I needed to replace these v-pulleys and flat idle pulleys after 20 years or so and Craftsman does not list them together. They are scattered across several drawings on their website and the owner's manual.

I made this drawing for myself but thought that it just might help others as well so here you go!

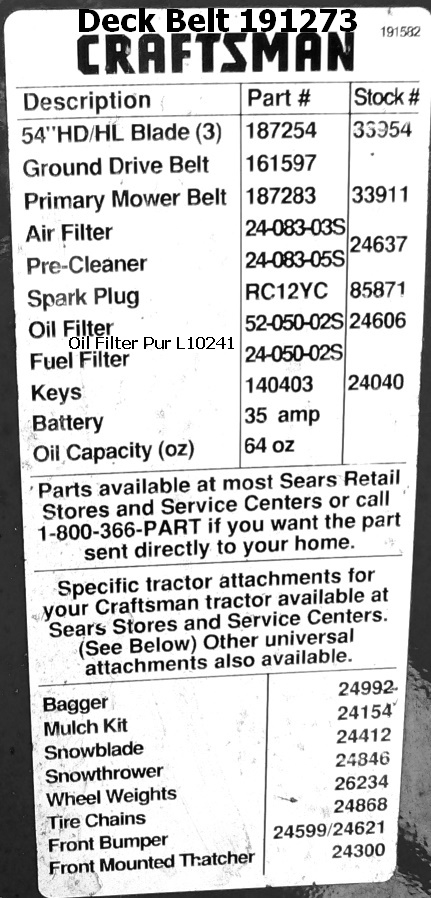

Mower Part Numbers:


HP: 25.0
Cutting Width: 54
Fuel Type: Gasoline
Fuel Capacity: 5.0
Oil Type Above 32 degrees: SAE 10W30
Oil Type Below 32 degrees: SAE 5W30
Oil Capacity: 4.0
Oil Capacity w/o Filter: 3.5
Oil Filter PUR L10241
Spark Plug: Champion RC12YC
Spark Plug Gap: .030
Forward Speed MPH: 5.8
Reverse Speed MPH: 2.1
Tire Pressure Front: 14.0
Tire Pressure Back: 10.0
Charging System AMPS: 15.0
Battery Amp Hours: 35.0
Battery Minimum Cold Cranking Amps: 280
Battery Case Size: U1R
Blade Bolt Torque: 55

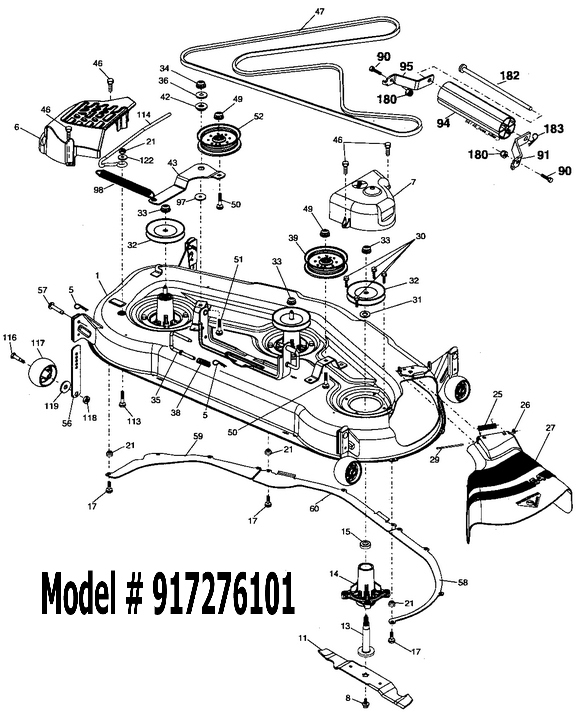

Deck Belt: 191273

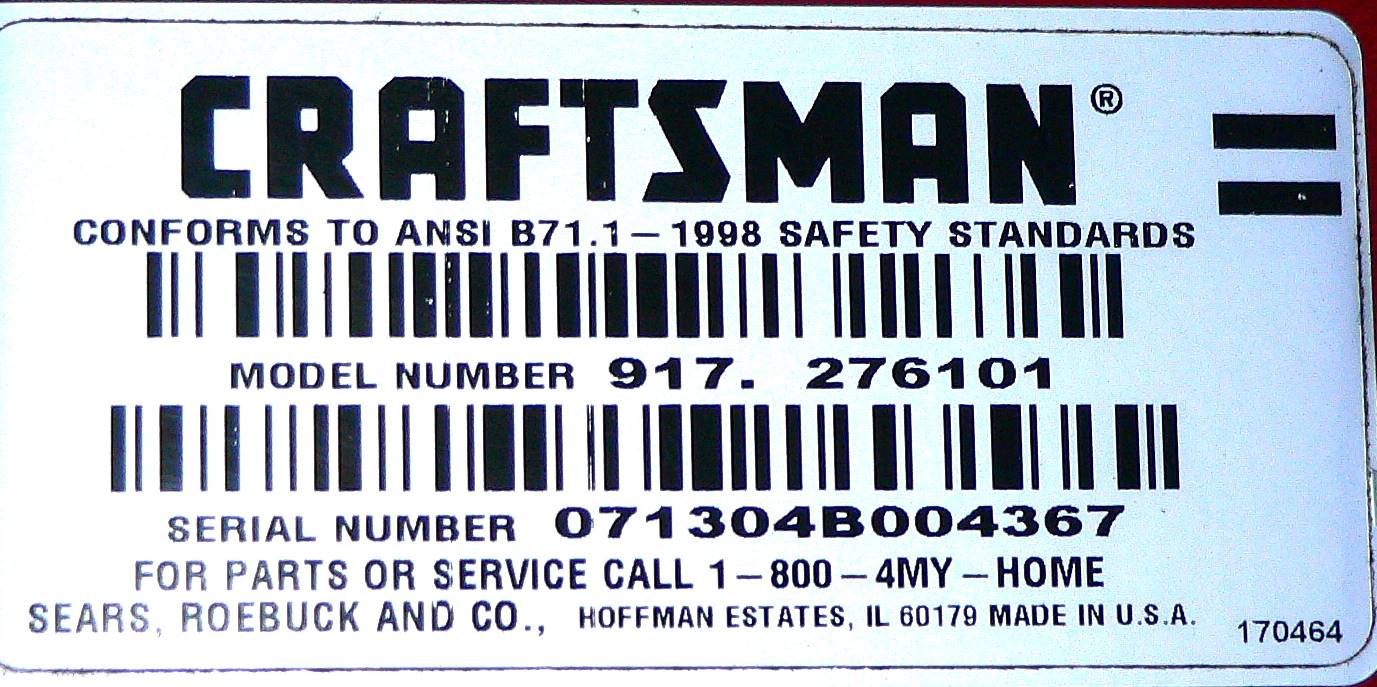

Model: 917.276101

Serial: 071304B004367


Source 917

Tractor  27610

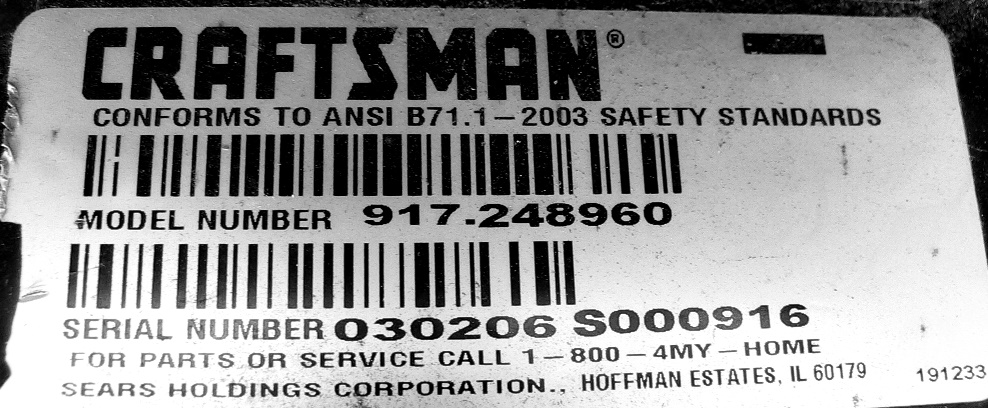

Bagger: Stock 24917 (+)      On this Tractor 917.248960

Snow blade  24414

Snow Thrower 24838 & 24831

Wheel Wt Standard  26234

Chains (E)  24868

Sun Shade  24230 +24240

Snow Cab 24276

Sleeve Hitch  24586

Mulch Kit  24154


24891 (bag) - two bin soft bag; Optional 3 bin soft bag (24892);optional 2 bin hard buckets (24897)

24903 (bag) two bin soft bag; Optional 3 bin soft bag (24904)

24916 (+)  24917 (+)- call 1-800-633-3522, ask for a 420974 kit (free of charge); throw away the two brackets  that come with the bagger initaliy

(E) verify wheel size for chains

24445 is Small Quick Secure weight and can be used in place of 24434

24446 is Large Quick Secure weight and can be used in place of 26234

33742 mulch kit replaces 24142, 24242, and 24742

24838 & 24831 current snow thrower plus adapter kit for older Garden tractors prior to MY2006
